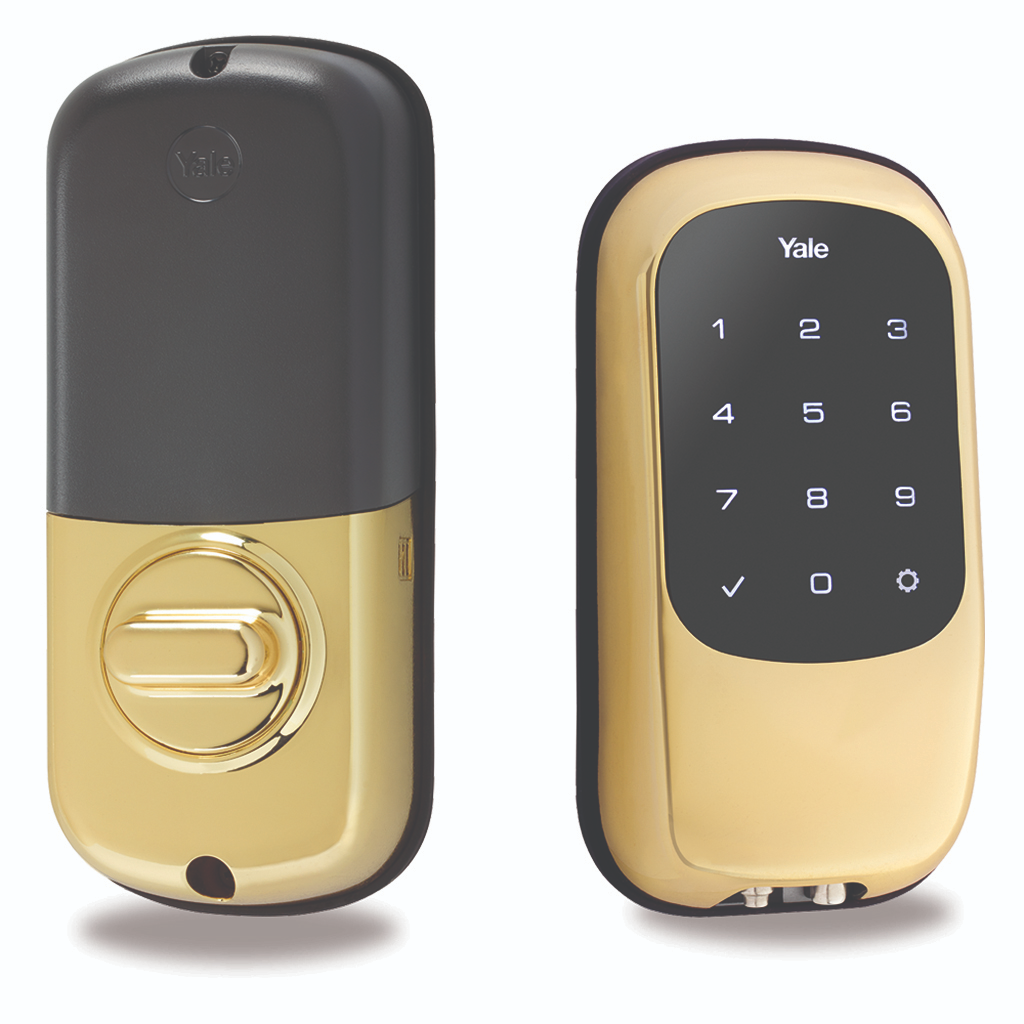

Yale YRD120ZW605 Z-Wave Touchscreen Key Free Deadbolt Lock
The Yale YRD120ZW605 Z-Wave Touchscreen Key Free Deadbolt Lock provides a “clean” appearance due to the Absence of the cylinder, yet means that lock picking or bumping are virtually impossible. In the unlikely event the batteries die – a 9V battery provides enough power to enter the code and gain access to the lock.
- Simple, elegant, tamper-resistant keypad
- Illuminated touchscreen for night time access
- For use on all standard interior and exterior doors
- Tapered bolt accommodates misaligned doors
- Z-Wave
- Sleek aesthetics
- Operational efficiency
- Completely eliminate the need to manage keys
- No need to ever re-key – just set up a NEW access code
- Increased security
Features
- Smallest residential keypad to enhance curb appeal
- Fast Z-Wave® enrollment with the push of a button
- Universal lock and program symbols for ease-of-use
- Enhanced interior design to reduce complexity and installation time
- The Features You Need with the Quality You Expect.
- Motorized tapered deadbolt
- Fully gasketed installation
- 4AA batteries included
- 9V battery backup
- Illuminated keypad
- Certified ANSI/ BHMA Grade 2
Specifications
Door Specs:
2 1/8″ Face Bore, 1″ Edge Bore
2 3/8″ or 2 3/4″ Backset
Door Thickness:
T1L 1 3/4″ to 2 1/4″
Product Measurements:
| Length (off door) |
Width (across face) |
Height (vertical) |
|
|---|---|---|---|
| Exterior | 15/16″ | 2 3/4″ | 5 1/8″ |
| Interior | 2 1/8″ | 3″ | 6 7/8″ |
